Lightweight. Compact. Portable.

A new generation of small outboard designed with features that offer greater ease of use, better portability and more economical operation.

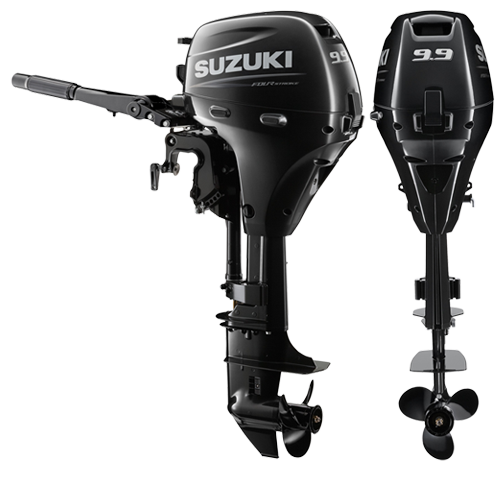

Suzuki engineers have succeeded in making these new outboards as compact and lightweight as possible. Comparing profiles it is obvious that the new range is more compact than the original they replace. What's more is that the new design weighs 4.5kg less than its predecessor. Less weight and more compact designs make an outboard that is easier to carry and transport.

Specifications

Recommended Transom Height (mm)S: 381, L: 508
Weight (Kg*)S: 39, L: 41.5
Engine TypeOHC
Piston Displacement (cm³)208
Maximum Output (kw)7.3
SteeringRemote (Mechanical), Tiller
Recommended FuelRON91 / AKI87
Alternator12V 6A
Gear Ratio2.08 : 1
ExhaustThrough Prop Hub Exhaust
Starting SystemElectric / Manual
CylindersIn-line 2
Fuel Delivery SystemCarburetor
Bore x Stroke (mm)51 x 51
Full Throttle Operating Range (rpm)5,200 - 6,200
Oil Pan Capacity (L)0.8
Fuel Tank Capacity (L)Separate (optional) 12
Trim MethodManual Trim and Tilt
Gear ShiftF-N-R
Propeller Selection (Pitch)7” - 11”
